EPM Admin Guide: http://wiki.freepbx.org/display/FCM/EPM-Admin+User+Guide

Tips and Tricks: http://wiki.freepbx.org/display/FCM/EPM-Tips+and+Tricks

http://wiki.provisioner.net

Video HowTo: https://www.youtube.com/watch?v=c2stvB979Cg

This FreePBX add-on module is for provisioning phones.

• Provisioning requires:
  • TFTP Server
  • HTTP Server
  • DHCP Server
  • NMAP
• Use DHCP option 66 or configure each phone for TFTP server address
• Allow UDP ports 67:69 for DHCP and TFTP in the firewall

http://www.the159.com/endpointman/tut.html

Prepare the TFTP folder, if necessary:

chown -R asterisk.asterisk /tftpboot
chmod 775 /tftpboot
find /tftpboot -type f -exec chmod 664 {} \;
find /tftpboot -type d -exec chmod 775 {} \;

By default, TFTP is run as read-only. Adding the -c enables file creation.

If you would like phones to be able to write their own logs to the PBX via TFTP:

vim /etc/xinetd.d/tftp

        server_args             = -vvv -c -s /tftpboot

chmod 777 /tftpboot
service xinetd restart

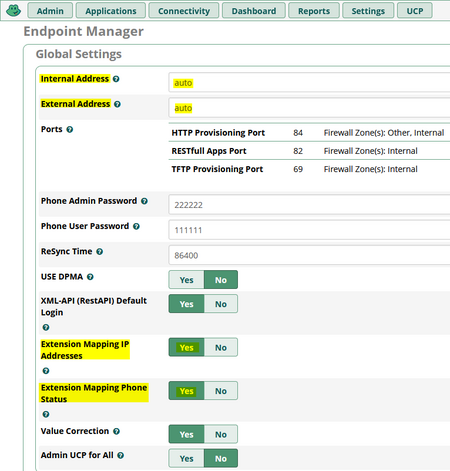

1. Global Settings
   1. Internal IP
   2. External IP
   3. Extension Mapping IP Addresses → Yes
   4. Extension Mapping Phone Status → Yes
2. Image Management
   • Optional
   • EPM will resize images as needed
     • Use larger images
3. Add a Brand
   • If necessary
   • Too many to list

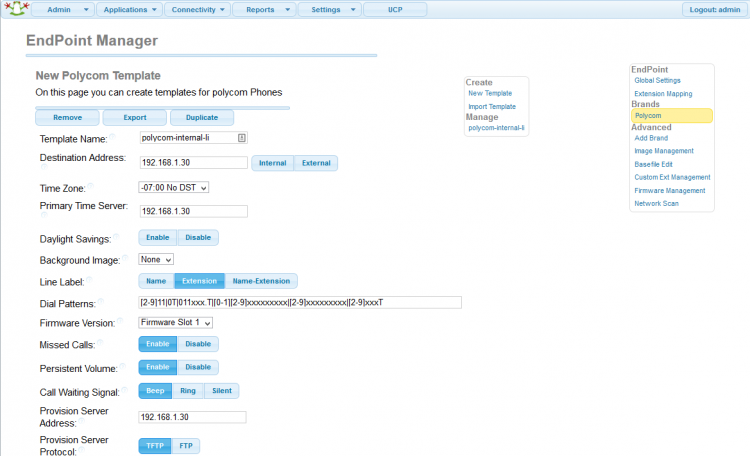

4. Create a Template
   1. Select Brand → New Template
      1. Name it like brand-internal-companyid
      2. After making changes, save the template
   2. Configure the models you need
5. Map Extensions to Templates
   • Various methods
     • Network Scan

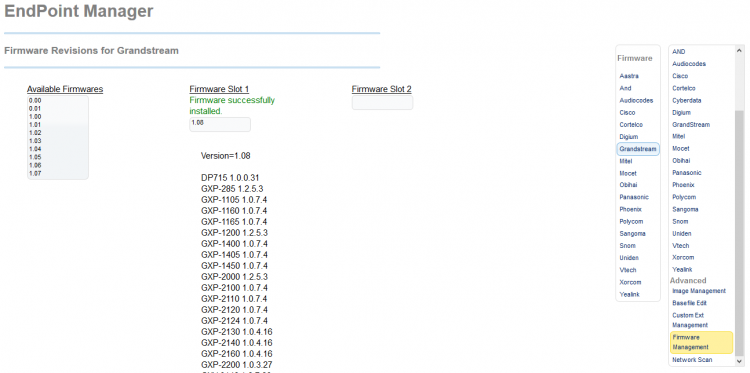

6. Firmware Management
   1. Drag desired (latest) firmware into slot 1
   • Use version 0.00 for custom firmware
     • Copy your files into the folder created
