Proxmox VE is a 64-bit, free, open-source, bare-metal virtualization platform (hypervisor).

Proxmox VE provides two virtualization technologies in one platform:

• OpenVZ Containers
• Linux KVM

KVM requires hardware (CPU+mainboard) virtualization support.

Proxmox VE Clusters can be managed from any of the cluster hosts.

https://<ipaddress>:8006

Use Etcher to write the ISO to a flash drive.

The installer is graphical and requires a mouse.

Download: https://www.proxmox.com/en/downloads

Proxmox VE comes pre-configured to use the 'enterprise' (paid subscription) package repository.

If you don't have a subscription, you must reconfigure the repository:

First, comment out the 'enterprise' repo:

vi /etc/apt/sources.list.d/pve-enterprise.list

Then clone the 'enterprise' repo file and modify it:

cp -a /etc/apt/sources.list.d/pve-enterprise.list /etc/apt/sources.list.d/pve-no-sub.list

vi /etc/apt/sources.list.d/pve-no-sub.list

deb http://download.proxmox.com/debian/pve buster pve-no-subscription

apt update
apt dist-upgrade
reboot

Windows 7: https://pve.proxmox.com/wiki/Windows_7_guest_best_practices

Windows 8: https://pve.proxmox.com/wiki/Windows_8_guest_best_practices

Windows 10: https://pve.proxmox.com/wiki/Windows_10_guest_best_practices

Windows 2012: https://pve.proxmox.com/wiki/Windows_2012_guest_best_practices

All very old below this point!

If you set a static IP address for the PVE host using the web interface post-installation, you may find the wrong IP address shown at the SSH login prompt. Edit /etc/hosts to fix:

nano /etc/hosts

reboot

On the Hardware Node (HN):

pveperf

http://www.howtoforge.com/proxmox-2-with-software-raid

http://c-nergy.be/blog/?p=1004

http://www.linux-kvm.org/page/Main_Page

KVM provides for full virtualization and is built into the Linux kernel. It's supported by Redhat, Ubuntu and other distributions.

Live migration with KVM requires that you store your VM data on NAS/SAN or DRBD.

• Raw
  • Better performance than qcow2
  • The full size will be provisioned on the proxmox host server (thick provisioning)
• QCOW
  • Supports snapshots
  • The full size will not be provisioned at first (thin provisioning)
  • Can use copy on write technology
• VMDK
  • Supports thin provisioning
  • More compatible with VMware

• KVM guest drivers are built into many Linux distributions.
  • http://wiki.libvirt.org/page/Virtio
• KVM Windows guest drivers are updated frequently and readily available:
  • http://www.linux-kvm.org/page/WindowsGuestDrivers/Download_Drivers
  • http://alt.fedoraproject.org/pub/alt/virtio-win/latest/images/bin/

http://wiki.openvz.org/Main_Page

http://pve.proxmox.com/wiki/OpenVZ_Console

OpenVZ Containers work differently than KVM, VMware or Xen technologies:

• Uses the same Linux kernel that's running on the host machine
• Probably provides the fastest virtualization
• Has near-zero overhead
• Only works for Linux guests

When you first create a CentOS 5 VM, you must reconfigure a few things: From the PVE host CLI, we enter the VM:

vzctl enter CTID                                  #next steps are all now inside the VM

Enable Proxmox CT console so we can access it from the web management interface:

vim /etc/inittab

Add the following line and reboot:

1:2345:respawn:/sbin/agetty tty1 38400 linux

When you first create a CentOS 6 VM, you must reconfigure a few things: From the PVE host CLI, we enter the VM:

vzctl enter CTID                                  #next steps are all now inside the VM

Enable Proxmox CT console so we can access it from the web management interface:

vim /etc/init/tty.conf

# This service maintains a getty on tty1 from the point the system is
# started until it is shut down again.

start on stopped rc RUNLEVEL=[2345]

stop on runlevel [!2345]

respawn
exec /sbin/agetty -8 tty1 38400

Then reboot the VM.

Differences Between venet and veth: http://wiki.openvz.org/Differences_between_venet_and_veth

Detailed veth Networking Info: http://forum.openvz.org/index.php?t=msg&&th=6191&goto=36869#msg_36869

venet Docs: http://openvz.org/Virtual_network_device

veth Docs: http://openvz.org/Virtual_Ethernet_device

• Proxmox VE uses a bridged networking model
• All VMs can share one bridge as if virtual network cables from each guest were all plugged into the same switch
• For connecting VMs to the outside world, bridges are attached to physical network cards and assigned a TCP/IP configuration
• VLANs (IEEE 802.1q) and network bonding/aggregation are possible with KVM

• Networking configuration is assigned by OpenVZ admin
• Possibly more secure since VM owners can't set the IP addresses
• Possibly faster than veth

• More like regular Linux networking
• Networking configuration is assigned by VM owner
• Has MAC address to support more networking configurations
• Used to get an IP address from your DHCP server
• Works with a pair of interfaces connected together
  • One in the host OS (host node, container zero, HN, CT0) and the other in the CT (container)
• Packets sent to the HN interface come out in the CT

http://forum.proxmox.com/threads/3442-Multiple-NICs-for-OpenVZ-containers

• You can assign multiple IP addresses
• Just add them after you created the container (separated with spaces) using the GUI

• Use the CLI
• See 'man vzctl'

If you have problems using the VNC Console links, verify that you have Sun/Oracle Java installed.

It seems to work fine with Java 6 or Java 7.

See also Fedora 16 Notes.

http://pve.proxmox.com/wiki/Backup_and_Restore

If you want to back up to and additional hard drive in your Proxmox server, you'll want to prep it and mount it manually. Then you can configure the backup in the web interface.

Create one large partition on the extra disk and create a filesystem. After that, create a mount point and create an entry in /etc/fstab. Finally, configure the directory /backup in the storage-gui.

fdisk -l

fdisk /dev/sdd

mkfs.ext3 /dev/sdd1

mkdir /mnt/backup

blkid

Edit /etc/fstab and add:

vim /etc/fstab

# Mount sdd1 as backup storage using the UUID
UUID=549b77bf-be9a-4bed-b56f-ab360004717c /mnt/backup ext3 defaults,noatime 0 0

mount -a
mount

/dev/sdd1 on /mnt/backup type ext3 (rw,noatime)

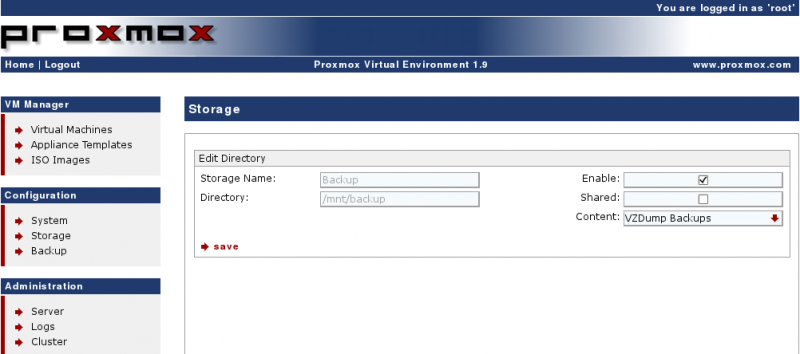

Configuration → Storage → Add Directory

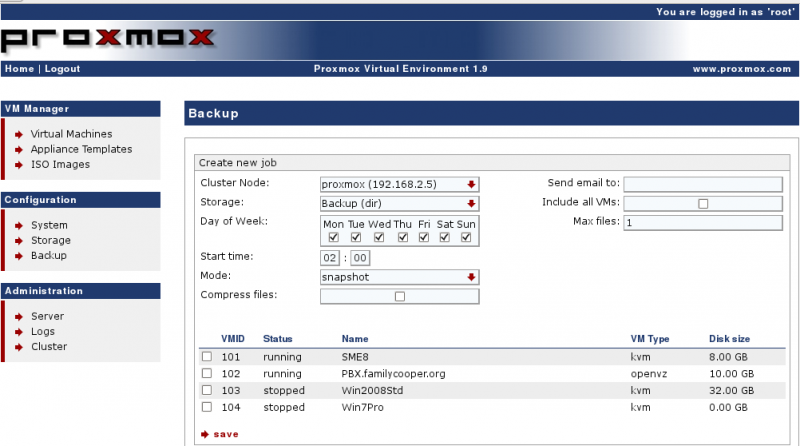

Configuration → Backup → Create New Job

See DAHDI.

http://nerdvittles.com/?p=645

• Use 64-bit hardware
• Use 64-bit Proxmox
• Use 64-bit guests
• Install DAHDI on Proxmox Host Node (HN)
• Pass through the DAHDI devices to the PBX guests
• Provides timing to (Asterisk) guest containers (CT)

apt-get -y update
apt-get -y install build-essential make libncurses5-dev libcurl3-dev libiksemel-dev pve-headers-`uname -r`
cd /usr/src/
wget http://downloads.digium.com/pub/telephony/dahdi-linux-complete/dahdi-linux-complete-current.tar.gz
tar zxfv dahdi-linux-complete-current.tar.gz
cd dahdi-linux-complete<tab>
make all
make install
make config

Edit /etc/dahdi/modules and comment out all modules unless you need them:

nano /etc/dahdi/modules

modprobe dahdi_dummy

amportal restart

http://pve.proxmox.com/wiki/Storage_Model

Supported storage technologies:

• Local storage (mandatory)
• iSCSI
• FC
• NFS

• In order to use live migration, all virtual disks needs to be stored on SAN, NAS or DRBD storage
• OpenVZ containers must be on local storage or NFS
• OpenVZ live migration works on NFS or local storage

See also napp-it ZFS Storage Server.

http://pve.proxmox.com/wiki/Storage_Model#LVM_Groups_with_Network_Backing

In this configuration, network block devices (iSCSI targets) are used as the physical volumes for LVM logical volume storage. This is a two step procedure and can be fully configured via the web interface.

1. Add the iSCSI target
   1. On some iSCSI targets you need to add the IQN of the Proxmox VE server to allow access
      1. Click Add iSCSI Target on the Storage list
      2. As storage name use whatever you want but take care, this name cannot be changed later
      3. Give the 'Portal' IP address or servername and scan for unused targets
      4. Disable use LUNs direcly
      5. Click save

1. Add LVM group on this target
   1. Click Add LVM Group on the Storage list
   2. As storage name use whatever you want but take care, this name cannot be changed later
   3. For Base Storage, use the drop down menu to select the previously defined iSCSI target
   4. For Base Volume select a LUN
   5. For Volume Group Name give a unique name (this name cannot be changed later)
   6. Enable shared use (recommended)
   7. Click Save

http://pve.proxmox.com/wiki/Proxmox_VE_2.0_Cluster

http://pve.proxmox.com/wiki/High_Availability_Cluster

http://pve.proxmox.com/wiki/Two-Node_High_Availability_Cluster

http://188.165.151.221/threads/9041-Advice-on-Shared-Storage-for-Proxmox-Cluster

http://pve.proxmox.com/wiki/Intel_Modular_Server_HA

• Proxmox cluster does not need a dedicated management node
• You can connect to the web interface of any node to manage the entire cluster
• If a virtual machine or container (VM or CT) is configured as HA and the physical host fails, the VM is automatically restarted on one of the remaining Proxmox VE Cluster nodes

http://pve.proxmox.com/wiki/User_Management

http://c-nergy.be/blog/?p=2501

http://c-nergy.be/blog/?p=2588

http://c-nergy.be/blog/?p=2570

http://www.turnkeylinux.org/blog/openvz-proxmox

Many command line tips here: http://forum.proxmox.com/archive/index.php/t-8624.html

Try logging into the PVE host and deleting the configuration file of the problem CT:

rm /etc/pve/nodes/pve1/openvz/1000.conf
