Zyxel GS1910 Ethernet Switch
Web Interface: http://192.168.0.250
http://www.zyxel.com/us/en/products_services/xgs1910_gs1910_series.shtml?t=p
Support Notes: ftp://ftp2.zyxel.com/GS1910-24HP/support_note/GS1910-24HP_V1.00.zip
Firmware Updates
You must, apparently, install firmware updates in order.
Initial Configuration
Default Login Details
| IP Address | http://192.168.1.1 |
| User Name | admin |
| Password | 1234 |
| Serial Console | 115200,N,8,1,No flow control |
CLI Basics
Out-of-Band (OOB) Management Interface
Enable Jumbo Frames
Access ports:
Trunk ports:
Create VLANs
http://www.manualslib.com/manual/200632/Zyxel-Communications-Es-2024-Series.html?page=85#manual
http://www.bogus.net/~torh/files/zyxel-vlan.txt
ftp://ftp.eyenetworks.no/ZyXEL/GS-2200-8/UserGuide/final/4-2_VLAN-port-based-4%200.pdf
Display current VLAN information:
Set the CLI to configuration mode and define VLAN:
Quality of Service
The Zyxel GS1910 has seven priority queues.
Higher numbered queues are higher priority.
The default priority queue is zero (0).
Show Current QoS Classifications
Web Interface → Monitor → QoS Statistics
Port-Based
See the Zyxel QoS support note for VLAN and port-based QoS.
DSCP
Web Interface → Configure → QoS → DSCP-Based QoS
Select the DSCP classifications you want to support and set the priority queues they are to be mapped to.
Here are some common selections:
| DSCP Classification | Priority Queue |
|---|---|
| 24 (CS3) | 3 |
| 34 (AF41) | 4 |
| 40 (CS5) | 5 |
| 46 (EF) | 5 |
Web Interface → Configure → QoS → DSCP Classification
Set the reverse mapping of priority queues to DSCP classifications.
Something like:
| Priority Queue | DSCP Classification |
|---|---|
| 3 | 24 (CS3) |
| 4 | 34 (AF41) |
| 5 | 46 (EF) |
Web Interface → Configure → QoS → QoS Control List
Create QoS Control List Entries (QCEs) to actuate the QoS classifications:
Access Control Lists
Example Application
- We have created a port-based VLAN on switch ports 1-6 to use a section of the switch as a DMZ.
- We have a primary Internet connection via cable modem connected to port 1.
- We have a server's IPMI interface configured with a static public address connected to port 2.
- We have a router's WAN interface configured with a static public address connected to port 3.
- For security reasons, we need to limit access to the server's IPMI (remote management) interface to the support provider's public Internet interface.

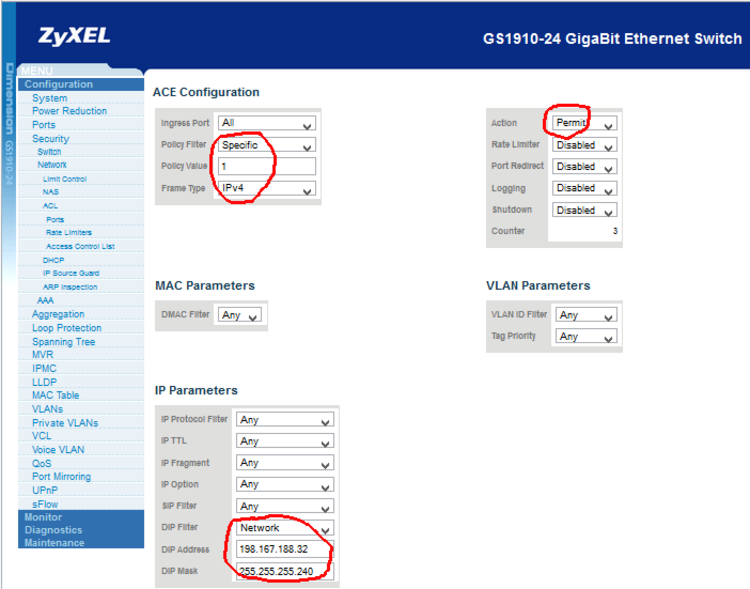

Create an ACE
Configuration → Security → Network → ACL → Access Control List → Add
We create an Access Control List entry (ACE) that permits traffic from the support provider's public IP address destined to the IPMI public IP address:
